Serie PRO

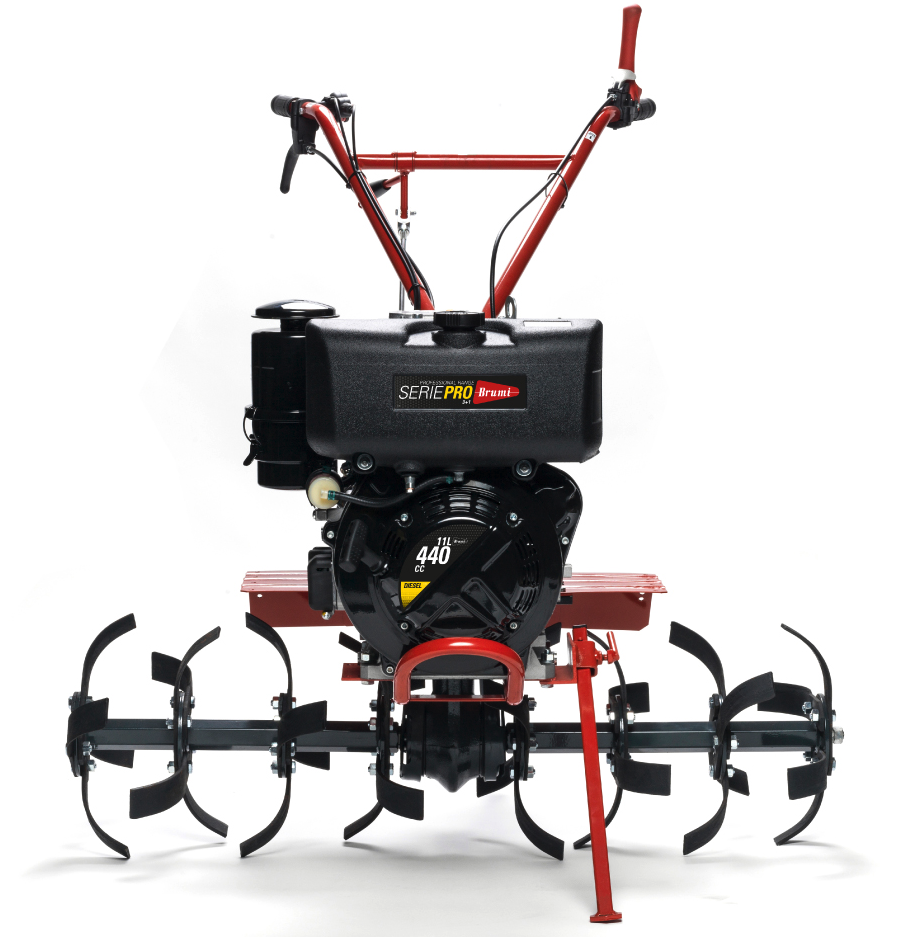

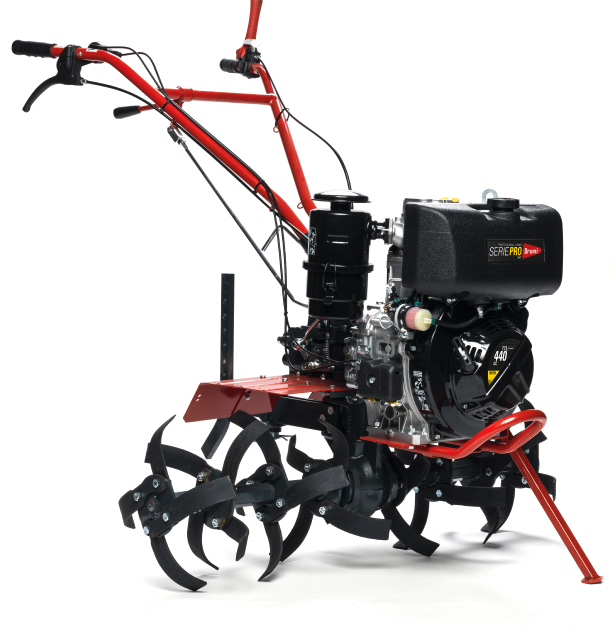

The SERIEPRO 3+1 motor-hoe offers the best performances combined to a huge robustness.

Transmission

The transmission with gears and bever gears in oil bath, together with the high power Diesel engine, confer to the machine an unstoppable force.

Extremely sturdy, reliable and well balanced, SERIEPRO is equipped with three forward speeds and a reverse speed and allows to mill any soil easily with minimal effort.

Extremely sturdy, reliable and well balanced, SERIEPRO is equipped with three forward speeds and a reverse speed and allows to mill any soil easily with minimal effort.

Clutch, gearbox and reverse lever

Everything is robust, ergonomic and handy. Designed to last forever.

Height adjustable handlebar

Adjustable handlebar direction

Milling machine with or without 105 and 110 cm discs

A TEAM EFFORT

Transmission shaft, gearbox and every functional component is designed to ensure maximum resistance to twisting and made with the highest quality materials.

Simplex quality is the lowest common denominator that makes BRUMI machines special, reliable and indestructible.

Sculptural teeth that constitute real mechanics masterpieces, prodigious cast iron groups that form the basis of the Simplex platform.

GEARS IN CEMENTED STEEL

Gears made of superior quality steel, induction-hardened, resistent and always well lubricated, as they are continuously immersed in oil bath.

Transmission

With gears and bever gears in oil bath

Clutch

Dry bevel with disengage


Speed

3 forward and 1 reverse speed

Material group

Cast iron + rebored and hardened gears

Tilling Blades

ATF64 105 cm + Disks / ATF15 110 cm


Weight with default blade

11L 125 kg / 10L 113 kg / 8Z 115 kg

Engines

Brumi 8D L178
Diesel
Code
MV9720
Engine maximum power
4,0 kW / 3600 RPM
Cylinder capacity
296 cc
Cooling
Air forced
Air Filter
Oil Bath
Tank
3,5 l
Brumi 11D L186
Diesel
Code
MV9790
Engine maximum power
6,3 kW / 3600 RPM
Cylinder capacity
418 cc
Cooling
Air forced
Air Filter
Oil bath
Tank
5,5 l
Lombardini 11L
Diesel
Code
KD15-440
Engine maximum power
7.5 kW / 3600 RPM
Cylinder capacity
441 cc
Cooling
Air Forced
Air Filter
Oil bath
Tank
4.3 L
Engine starting
Recoil starter

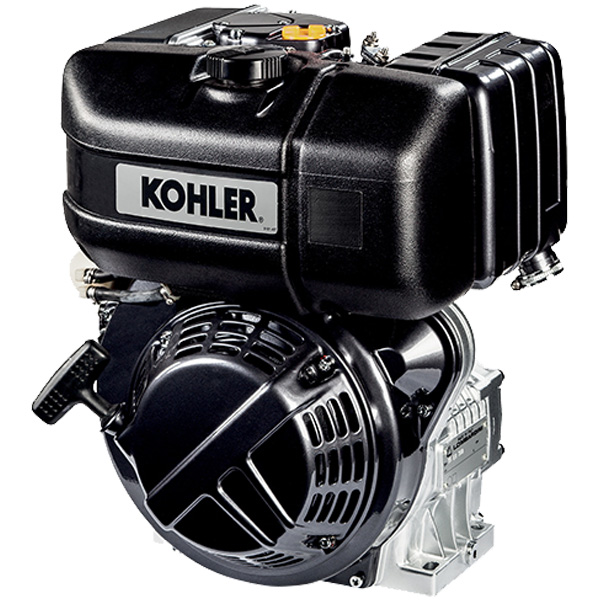

Lombardini 10L
Diesel
Code
KD15-350
Engine maximum power
5.1 kW / 3600 RPM
Cylinder capacity
349 cc
Cooling
Air Forced
Air Filter
Oil bath
Tank
4.3 L
Engine starting
Recoil starter
